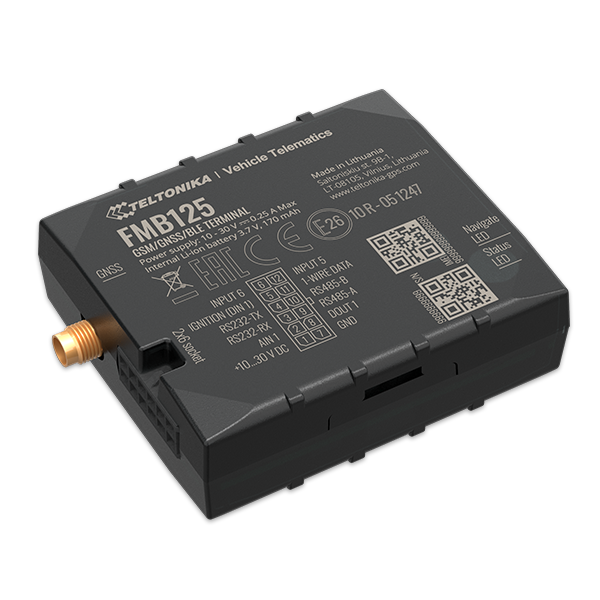

FMB125 Teltonika

FMB125 FMB125, a small and professional tracker with internal high-gain GSM and external GNSS antennas, which can collect device coordinates and other useful data and transfer them through the GSM network to the server. This device is perfectly suitable for applications where the acquisition of the location of remote objects is needed: fleet management, car rental companies, taxi companies, public transportation, logistics companies, personal vehicles, etc. FMB125 can perform tasks on remote objects, such as monitoring the engine status, controlling the truck door, etc.

Specifications

Manufacturer Model Type I/O Battery Communication Methods
Teltonika FMB125 GPS 1/1 Yes - Internal Battery GSM/GPRS/GNSS/BLUETOOTH

Features

MODULE
Name Teltonika TM2500
Technology GSM / GPRS / GNSS / BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channels
Tracking sensitivity -165 dBM
Accuracy <3 m
Hot start <1 s
Warm start <25 s
Cold start <35 s
CELLULAR
GSM technology
2G bands Quadband 850/900/1800/1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text / data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Backup battery 170 mAh 3.7 V lithium-ion battery (0.63 Wh)
Power consumption at 12 V <6 mA (ultra-deep sleep)
At 12V <6.5 mA (deep sleep)
At 12V <7 mA (online suspension)
At 12V <12 mA (GPS idle)
At 12V <38 mA (nominal)

FMB125

Requirements

See the complete documentation
FMB125

Programming

See the complete documentation
FMB125

SMS Programming

See the complete documentation
FMB125

Commands

See the complete documentation
